Dongguan City Xinying Electronic Co., Ltd.

OEM custom made VGA Cable harness

  • Item No. : XY230014
  • Place origin : China (Mainland)
  • Brand name : Xinying/OEM
  • Application : PCB
  • Delivery time : 15-25 Days after deposit
  • Insulation Material : PVC/FEP/TPEE
  • Inspection : 100% inspected before delivery
  • Certificate : UL/CUL/SA/CSA/ROHS/ISO9001 2008
  • Warranty : 12 months
  • Sample : Sample tests before mass production
BASIC INFO
OEM custom made VGA Cable harness

Technical Reference

Specifications –––––––––––––––––––

 • Current rating: 3A AC, DC (AWG #22)

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

                                    (including temperature rise in applying electrical current)

 • Contact resistance: Initial value/ 10m Ω max.

                                      After environmental testing/ 20m Ω max.

 • Insulation resistance: 1,000M Ω min.

 • Withstanding voltage: 800V AC/minute

 • Applicable wire:  AWG #28 to #22

 • Applicable PC board thickness: 1.6mm

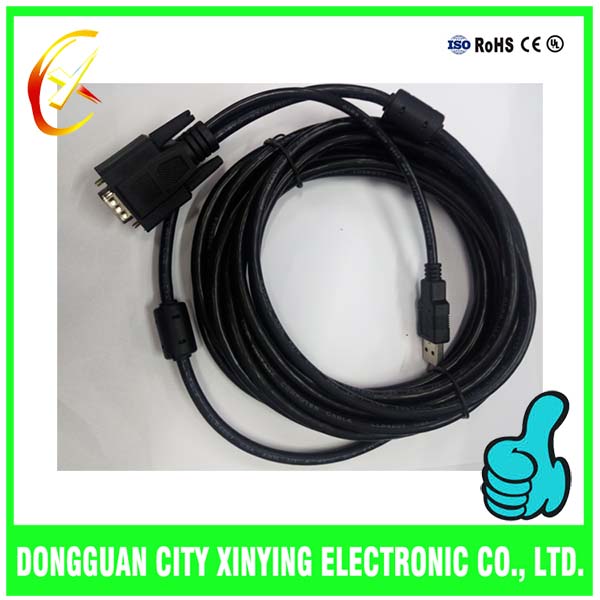

Pictures of Product





 Brief Description of Our Product


Wire

AWG#22

Wire Length as the requires
Wire Color as the requires
Temperature  -25˚C to +85˚C
Voltage 250- 800 V
Connector JST connector
Pin  DB 9 pins / 25pins
Pitch
Feature


1. D-sub connector
2. UL standard cables.
3. RoHS approval.
4. OEM or ODM order are welcome.
5. Multiple choices for products, quickly delivery, best price and can be molding as per your request.
6. Customized designs are accepted with different ways to processing cable assembly based on the requirements.
7. For testing, With latest detection equipment experiment.
8. For After-sale service, professional engineer will help you if any problems.
9. Customers' detailed requires or drawing are welcome.

Production Line of Product



Packing & Shipping of Product



(1) Packing: usually PE inner ,outer carton,or at customer's option.



(2) We have strong coorperation with DHL,FEDEX,TNT,UPS,EMS and China Air Post etc.

     You can also choose your own shipping forwarder.











NOT YOUR EXPECTED ONE?

DON'T LEAVE!

SEND US YOUR DETAILED DRAWINGS OR SAMPLES.

PROFESSIONAL ENGINEER IS JUST AT YOUR SIDE!
