2016 new design custom wire Panel Mount pushbutton with over-molding

Item No. : XY230042
Place origin : China (Mainland)
Brand name : Xinying/OEM
Application : Electric
Delivery time : 15-25 Days after deposit
Insulation Material : PVC/FEP/TPEE
Inspection : 100% inspected before delivery
Certificate : UL/CUL/SA/CSA/ROHS/ISO9001 2008
Warranty : 12 months
Sample : Sample approval before mass production

INQUIRY

BASIC INFO

custom made 0.8mm pitch connector wiring harness

Technical Reference

Specifications –––––––––––––––––––

•Rating: 400mA 32VAC \100mA 50VDC 125mA 125VAC

•Contact Resistance: 50mΩ MAX.

•Insulation Resistance: 100MΩ min.at 500VDC

•Dielectric Strength: 1000 VAC rms.

• Electrical life: 500,000 cycles

•Operating Temperature: -30°C~85°C

•Operating Pressure:2～5N Operating

•Stroke:1.5～2.5mm Protection

•Grade:IP67 Soldering:300°C max.for 5 seconds Function:OFF-(ON)

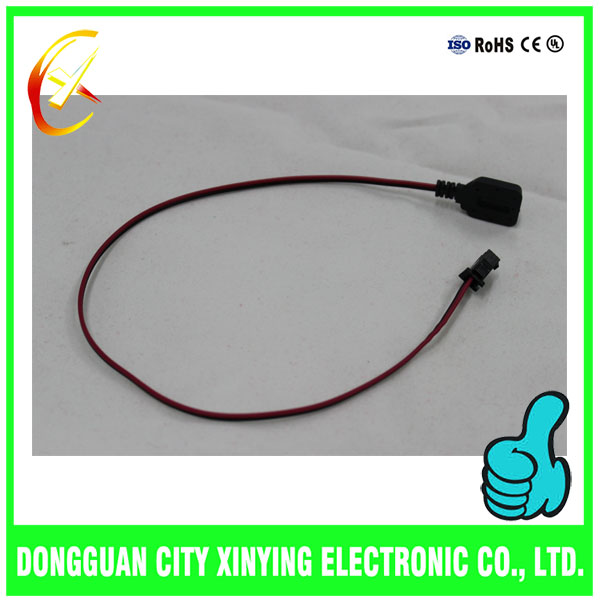

Pictures of Product

Brief Description of Our Product

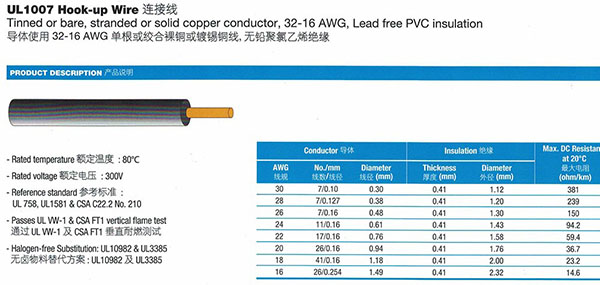

Wire	UL1007 UL1015 UL 2464 UL1312 UL1571# 32 to #10 wire harness or according to customer's requirment
Wire Length	as the requires
Wire Color	as the requires
Temperature	-30˚C to +85˚C
Voltage	30-200 V
Connector	Button
Pin
Pitch
Feature

1. terminal：brass
2. UL standard cables.
3. RoHS approval.
4. OEM or ODM order are welcome.
5. Multiple choices for products, quickly delivery, best price and can be molding as per your request.
6. Customized designs are accepted with different ways to processing cable assembly based on the requirements.
7. For testing, With latest detection equipment experiment.
8. For After-sale service, professional engineer will help you if any problems.
9. Customers' detailed requires or drawing are welcome.
